Yitong Brand drilling wire filling industrial brush machine steel

Yitong Brand drilling wire filling industrial brush machine steel
  • Yitong Brand drilling wire filling industrial brush machine steel

Yitong Brand drilling wire filling industrial brush machine steel

Brand Name
YITONG
Model Number
BHF505SF
Payment Item
T/T or western Union, LC
Price Item
EXW, FOB, CNF, CIF
Delivery Time
30 days
Packaging Details
Belt, PP bag and Wooden box
Place of Origin
Guangzhou, China
Company Advantages
1. Yitong industrial brush machine are composed by our adroit experts using fantastic element inputs and modish strategies.
2. Further, they stringently test each procured product based on certain quality parameters. Strict quality control can guarantee the excellent quality of our machines
3. Yitong wire brush machine gives the maximum output and the products designed by GUANGZHOU YITONG NC CO LTD. have longer life. Our machines enjoy a leading position in the industry.
4. Plus, GUANGZHOU YITONG NC CO LTD. assigns a complete project team with expertise in engineering, test and supply chain, providing customers with the resources necessary to get a product to market on time and on budget. We are the one who has manufactured the first Chinese-made 5-axis drilling machine and 5-axis filling machine
5. Our machines are produced with high quality and high efficiency, GUANGZHOU YITONG NC CO LTD. Keeps Providing High Quality wire brush machine for wood, wire brush machine for wood for sale At Competitive Prices.
PRODUCT introdction

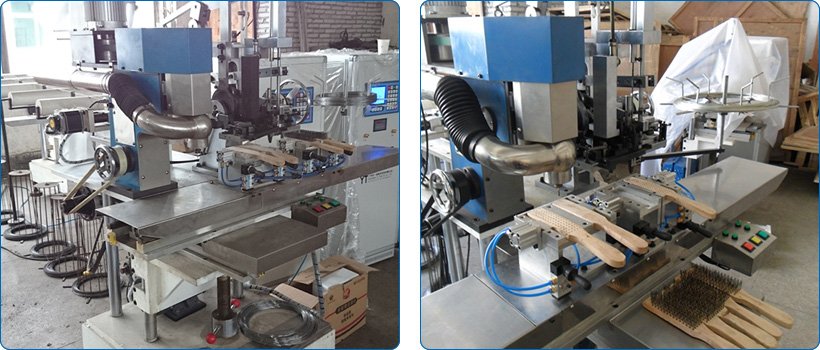

steel wire brush machine is a 5 axis drilling and filling machine special for steel wire brush, it works the steel wire by coil, the machine cut the steel wire by itself, The operator manually loads the virgin blocks onto the machine and enables the working cycle. When the cycle is over, the operator removes the filled block and then moves the drilled block from the drilling station to the filling station, and places a virgin block into the drilling station, during the operating, the machine no need to stop, it would run automatic.


undefined

HIGHLIGHTS

Full automatic, no need to stop the machine even changing the virgin blocks.
Working the steel wire by coil, the machine cut the steel wire by itself.
easy to change design.


undefined

TECHNICAL DATA


Axis

4-7 axis

Function

Drilling & Filling

Filling mode

Staples mode

Standard Working Area

X*Y = 500mm*200mm

Material of filaments

Steel wire

Maximum length(standard)

90mm

Diameter of wire

0.3-0.6mm

Quantity of wire per hole

Less than 12 pieces

Diameter of holes

3mm-4mm

Production speed

150-180 holes/minute

Material of brush blocks

Plastic, wooden

Motor

Servo motors

Quantity of designs

Maximum 36000 holes

Gross Weight

Around 1500KGS

Power Supply

Three phase 380V, 50-60HZ

Power consumption (kW)

3.5

Dimensions of machine (l x p x h, mm)

2200 * 3500 * 2150

Dimensions of power box (l x p x h, mm)

580 * 660 * 1500

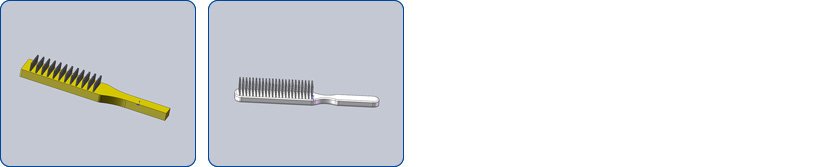

application

undefined
undefined




Company Features
1. Keeping track with the latest technological developments, we are offering a premium quality industrial brush machine. - Great Hope Makes Great Man. Yitong Offers Contemporary wire brush machine, wire brush machine for wood for sale, wire brush machine for sale At Affordable, Wholesale Prices. Inquiry!
2. Yitong Brush Machine' reputation in providing the highest quality wire brush machine for wood solutions dates back to our earliest beginnings.
3. The quality assurance program followed by us also ensures that these products are in complete compliance with the international quality standards. - Choose From Our Wide Range Of Products, You Will Find What You Need, With Rich Experience In industrial brush machine, steel wire brush machine Export, GUANGZHOU YITONG NC CO LTD. Has Built A Good Brand In The World, Welcome To Contact Us For More Information, Get The Best And Cheapest Offers From Our Company, Get Quote!
