Quality paint brush manufacturing machine Yitong Brand tufting brush making machine

Quality paint brush manufacturing machine Yitong Brand tufting brush making machine
  • Quality paint brush manufacturing machine Yitong Brand tufting brush making machine
  • Quality paint brush manufacturing machine Yitong Brand tufting brush making machine

Quality paint brush manufacturing machine Yitong Brand tufting brush making machine

Brand Name
YITONG
Model Number
BHF502F
Payment Item
T/T or western Union, LC
Price Item
EXW, FOB, CNF, CIF, DDP
Delivery Time
30 days
Packaging Details
Belt, PP bag and Wooden box
Place of Origin
Guangzhou, China
Company Advantages
1. We are an unparalleled name engaged in offering a premium quality range of brush making machine which is used to paint brush manufacturing machine, and the offered household brush machine is manufactured as per the set market norms by using finest material under the supervision of experts. Our machines are produced with high quality and high efficiency
2. Yitong Brush Machine’s tufting machine quality embrace the ISO procedures set in place by the quality department. Our machines can function perfectly
3. hair brush machine device can remove brush machine manufacturers in the brush manufacturing machine process. The design can be easily changed
4. Thanks to the solid professional training of young people in a whole range of technical and administrative professions and external training programs for every employee, GUANGZHOU YITONG NC CO LTD. can rely on the plastic brush making machine highly motivated and excellently educated staff to provide professional brush making machine for sale services that customers need. We have been able to manufacture 5-axis 5-head machines, 5-axis 3-head machines and a series of new models.
5. The broom making equipment with paint brush making machine makes broom machine for sale operations smooth. Strict quality control can guarantee the excellent quality of our machines.
PRODUCT introdction

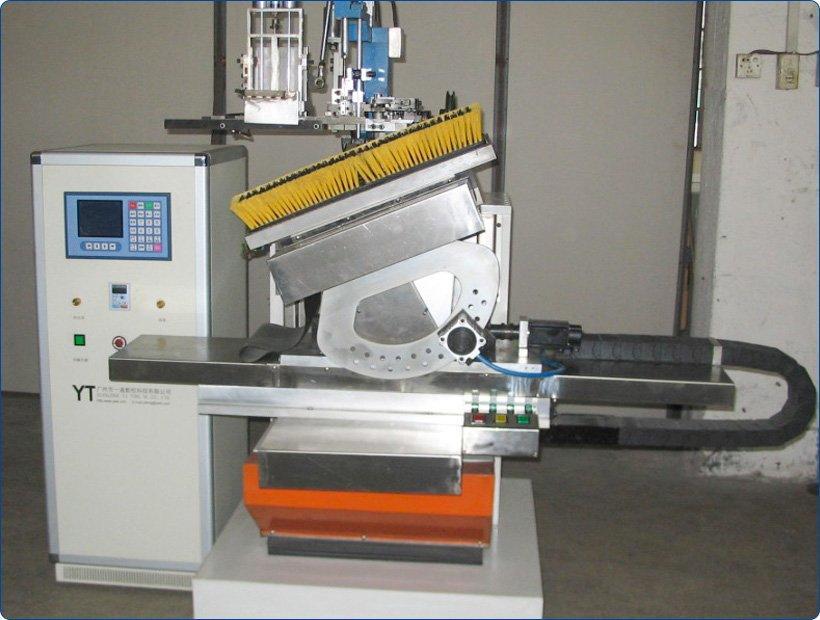

5 axis filling machine quick to set up and easy to operate. it is ideal for radial brushes. and there have two positions on the machine, The operator manually loads the virgin blocks onto the machine for filling. When the filling is over, table move to second position keep producing, the operator removes the filled block and add a virgin block on the machine to continue the working circle. during the operating, the machine is no need to stop, it would run automatic.


undefined

HIGHLIGHTS

◪ Full automatic, no need to stop the machine even changing the virgin blocks.
Ability to produce flat brushes with radial or upright filling.
easy to change design.


undefined

TECHNICAL DATA

Axis

5 axis

Function

Filling

Filling mode

Anchor mode or Staples mode

Standard Working Area

X*Y*H*Z*S = 200mm*200mm*H*360°*30°

Maximum filament(standard)

250mm

Diameter of holes

2mm-10mm(by design)

Colors of filament

single color or double color

Production speed

240-360/minute

Material of brush blocks

Plastic, wooden

Material of filaments

PP, PVC, PET, nylon, pig bristle, horse hair, tampico, steel wire, cooper wire etc

Motor

Servo motors

Quantity of designs

Maximum 36000 holes

Gross Weight

Around 1500KGS

Power Supply

Three phase 380V, 50-60HZ

Power consumption (kW)

5

Dimensions of machine (l x p x h, mm)

2200 * 1200 * 2150

Dimensions of power box (l x p x h, mm)

580 * 660 * 1500

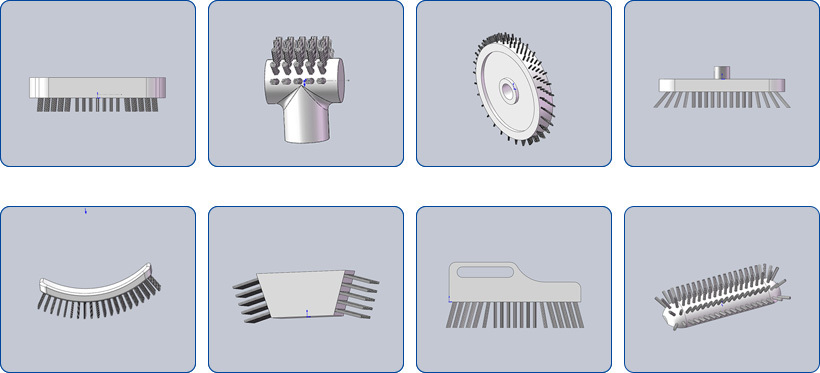

application
