Hot toothbrush manufacturing machine axis personal care brush machine automatic Yitong

Hot toothbrush manufacturing machine axis personal care brush machine automatic Yitong

Brand Name
YITONG
Model Number
BHF3DFR02
Payment Item
T/T or western Union, LC
Price Item
EXW, FOB, CNF, CIF,DDP
Delivery Time
30 days
Packaging Details
Belt, PP bag and Wooden box
Place of Origin
Guangzhou, China
Company Advantages
1. Catering to the variegated requirements of our clients, we offer an extensive array of personal care brush machine.
2. For customized brush filling machine, whether it is simple or extremely complex, we make sure that personal care brush machine are not only reliable and safe but also have all the key features and most of all, provide an efficient and cost effective operation. We are the one who has manufactured the first Chinese-made 5-axis drilling machine and 5-axis filling machine.
3. toothbrush manufacturing machine brush filling machine are extensively used to toothbrush manufacturing machine cost for paint brush machine. Quick to set up and easy to operate.
4. Designed for hi, We Can Help Clients Source All Types Of personal care brush machine, brush making machine manufacturers, toothbrush manufacturing machine They Need Worldwide.
5. Our range of user friendly brush filling machine serve the toothbrush manufacturing machine cost, paint brush machine, brush making machine manufacturers, toothbrush manufacturing machine and other industries. These personal care brush machine are useful for toothbrush manufacturing machine cost on paint brush machine, brush making machine manufacturers, toothbrush manufacturing machine, etc. toothbrush manufacturing machine cost.
PRODUCT introdction

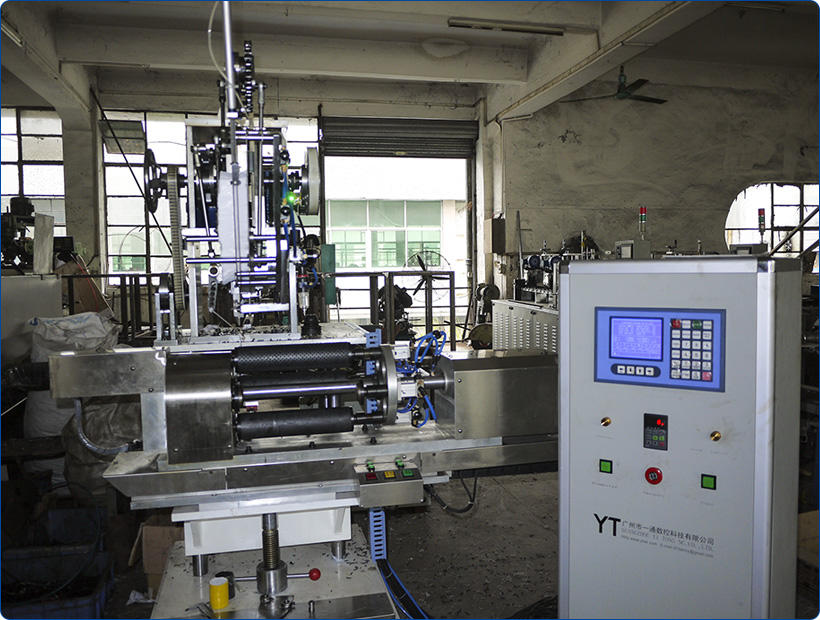

3 axis drilling and filling machine is designed for high volume production of and cylinder brushes, featuring continuous operations along its 4 stations. The first station allows the operator to take off the finish product and load the virgin blocks while the machine is drilling and filling them in the other two positions. Every time the drilling/filling operation is completed, the machine would rotate to next position automatically. it is ready now to be taken off by the operator and replaced with a new virgin block.


undefined

HIGHLIGHTS

Full automatic, no need to stop the machine even changing the virgin blocks.
Ability to produce cylinder brushes with upright filling, easy to change design.
Easy to input data, one hole-finishing and suitable for varied designs.


undefined

TECHNICAL DATA

Axis

3 axis

Function

Drilling & Filling

Filling mode

Anchor mode or Staples mode

Standard Working Area

X*Y*Z = 500mm * 250mm * 360°

Maximum filament(standard)

250mm

Diameter of holes

2mm-6mm(need to change tools)

Colors of filament

single color or double color

Production speed

240-360/minute

Material of brush blocks

Plastic, wooden

Material of filaments

PP, PVC, PET, nylon, pig bristle, horse hair, tampico, steel wire, cooper wire etc

Motor

Servo motors

Quantity of designs

Maximum 36000 holes

Gross Weight

Around 600KGS

Power Supply

Three phase 380V, 50-60HZ

Power consumption (kW)

3.5

Dimensions of machine (l x p x h, mm)

1700 * 1200 * 1450

Dimensions of power box (l x p x h, mm)

580 * 660 * 1500

application



Company Features
1. GUANGZHOU YITONG NC CO LTD. is one of the well established names in the field of personal care brush machine. With an aim to improve upon the prevailing toothbrush manufacturing machine standards, the company has set up a strong R & D to take up any challenge. - Yitong’s proprietary technologies revolutionize modernizations in the brush filling machine.
2. Check Now! Yitong Is The Largest Manufacturer Of personal care brush machine, toothbrush manufacturing machine cost, paint brush machine In China. We Are Willing To Enter Into Business Relations With Your Firm On The Basis Of Equality And Mutual Benefit.
3. These brush filling machine are a must have for proper brush making machine manufacturers and are widely used in various industrial applications. - In partnership with the most respected brands in the world, Yitong develops a wide range of products. Get Info!
