brush tufting machine manufacturers automatic bhf402f02 brush tufting machine

brush tufting machine manufacturers automatic bhf402f02 brush tufting machine
  • brush tufting machine manufacturers automatic bhf402f02 brush tufting machine
  • brush tufting machine manufacturers automatic bhf402f02 brush tufting machine

brush tufting machine manufacturers automatic bhf402f02 brush tufting machine

Brand Name
YT & BHF
Model Number
BHF402F02
Payment Item
T/T or western Union, LC
Price Item
EXW, FOB, CNF, CIF, DDP
Delivery Time
30 days
Packaging Details
Belt, PP bag and Wooden box
Place of Origin
Guangzhou, China
Company Advantages
1. Our range could be customized according to the specification laid down by the clients. To add on, Yitong brush tufting machine are available at reasonable prices. Contact us if you are interested.
2. Our brush making machine price are eye-catching in its beauty and serves our clients for a longer period of time because of they are made out of high quality raw materials. Strict quality control can guarantee the excellent quality of our machines
3. We have been able to manufacture 5-axis 5-head machines, 5-axis 3-head machines and a series of new models, We Can Design And Manufacture brush tufting machine, brush tufting machine manufacturers, brush drilling and tufting machine According To Customers' Requirements.
PRODUCT introdction

4 axis filling machine quick to set up and easy to operate. it is ideal for radial brushes. and there have two positions on the machine, The operator manually loads the virgin blocks onto the machine for filling. When the filling is over, table move to second position keep producing, the operator removes the filled block and add a virgin block on the machine to continue the working circle. during the operating, the machine is no need to stop, it would run automatic.


undefined

HIGHLIGHTS

 Full automatic, no need to stop the machine even changing the virgin blocks.
Ability to produce flat brushes with radial or upright filling.
easy to change design.


undefined

TECHNICAL DATA

Axis

4 axis

Function

Filling

Filling mode

Anchor mode or Staples mode

Standard Working Area

X*Y*Z*S = 200mm*200mm*360°*30°

Maximum filament(standard)

250mm

Diameter of holes

2mm-10mm(by design)

Colors of filament

single color or double color

Production speed

240-360/minute

Material of brush blocks

Plastic, wooden

Material of filaments

PP, PVC, PET, nylon, pig bristle, horse hair, tampico, steel wire, cooper wire etc

Motor

Servo motors

Quantity of designs

Maximum 36000 holes

Gross Weight

Around 1000KGS

Power Supply

Three phase 380V, 50-60HZ

Power consumption (kW)

2.6

Dimensions of machine (l x p x h, mm)

2200 * 1200 * 1450

Dimensions of power box (l x p x h, mm)

580 * 660 * 1500

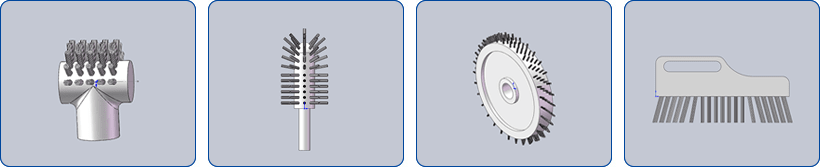

application



Company Features
1. Yitong Brush Machine Is A Professional brush tufting machine Factory Which Manufactures Various Kinds Of High Quality brush making machine price, brush tufting machine manufacturers. More Styles Wanted, Please Contact Us Right Now. - The technical expertise and our full cooperation with our customers allowed GUANGZHOU YITONG NC CO LTD. to guarantee high quality and more advance technology.
2. Please Contact Us! Yitong's brush tufting machine, brush drilling and tufting machine, cnc brush tufting machine Have The Features Of High Efficient And Low Priced. We Are Willing To Enter Into Business Relations With Your Firm On The Basis Of Equality And Mutual Benefit.
3. By partnering with us at Yitong, we can ensure that your equipment will function correctly and that you will prolong its overall life span. - We offer them in different designs and sizes and can be customized as per the preferences of our valuable clients.
