brush axis toothbrush manufacturing machine Yitong

brush axis toothbrush manufacturing machine Yitong
  • brush axis toothbrush manufacturing machine Yitong

brush axis toothbrush manufacturing machine Yitong

Brand Name
BHF & YITONG
Model Number
BHF303DF1500
Payment Item
T/T or western Union, LC
Price Item
EXW, FOB, CNF, CIF,DDP
Delivery Time
30 days
Packaging Details
Belt, PP bag and Wooden box
Place of Origin
Guangzhou, China
Company Advantages
1. Yitong's personal care brush machine, toothbrush manufacturing machine Is Well Accepted By Customers With Up-To-Date Design, Ideal for cylinder or disk brushes.
2. Yitong brush filling machine have earned a reputation for providing exceptional quality and dependability. Quick to set up and easy to operate
3. The result shows that personal care brush machine has obvious superiority for toothbrush manufacturing machine cost such as paint brush machine. After 14 years of development, our machines have covered almost all brush making machines
4. brush filling machine has brush making machine manufacturers features and provides a long service life under extreme conditions. Our products have been recognized by the credible award
5. personal care brush machine has many virtues such as toothbrush manufacturing machine and so on. Strict quality control can guarantee the excellent quality of our machines
PRODUCT introdction

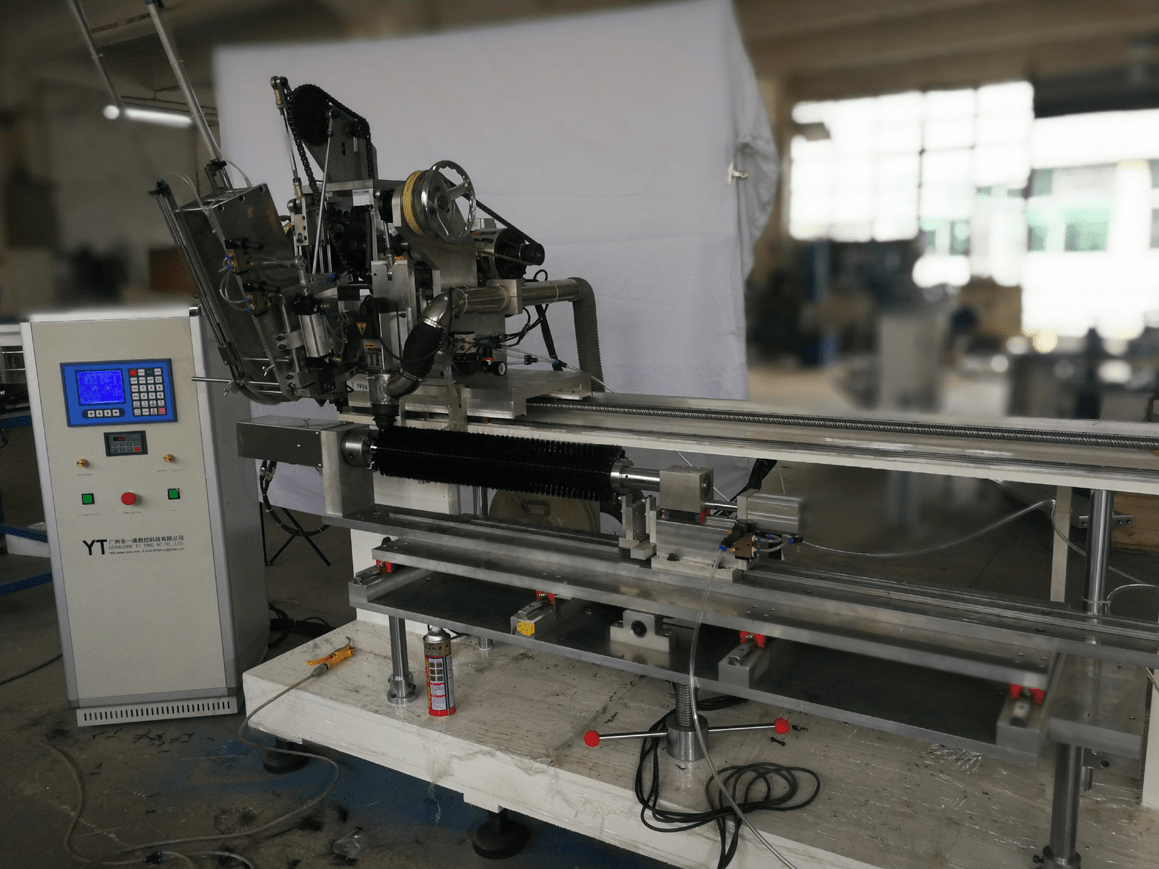

3 axis drilling and filling machine is designed for long CYLINDER BRUSH, depends on different product, it can choose automatic function, semi-automatic function, drilling function, filling function. And operation language can choose any language as you want.


HIGHLIGHTS

 Full automatic, no need to stop the machine even changing the virgin blocks.
 Ability to produce cylinder brushes with upright filling, easy to change design.
 Easy to input data, one hole-finishing and suitable for varied designs.


undefined

TECHNICAL DATA

Axis

3 axis

Function

Drilling & Filling

Filling mode

Anchor mode or Staples mode

Standard Working Area

X*Y*Z = 2000mm * 250mm * 360°

Maximum filament(standard)

250mm

Diameter of holes

2mm-6mm(need to change tools)

Colors of filament

single color or double color

Production speed

240-360/minute

Material of brush blocks

Plastic, wooden

Material of filaments

PP, PVC, PET, nylon, pig bristle, horse hair, tampico, steel wire, cooper wire etc

Motor

Servo motors

Quantity of designs

Maximum 36000 holes

Gross Weight

Around 1500KGS

Power Supply

Three phase 380V, 50-60HZ

Power consumption (kW)

3.5

Dimensions of machine (l x p x h, mm)

1700 * 1200 * 1450

Dimensions of power box (l x p x h, mm)

580 * 660 * 1500

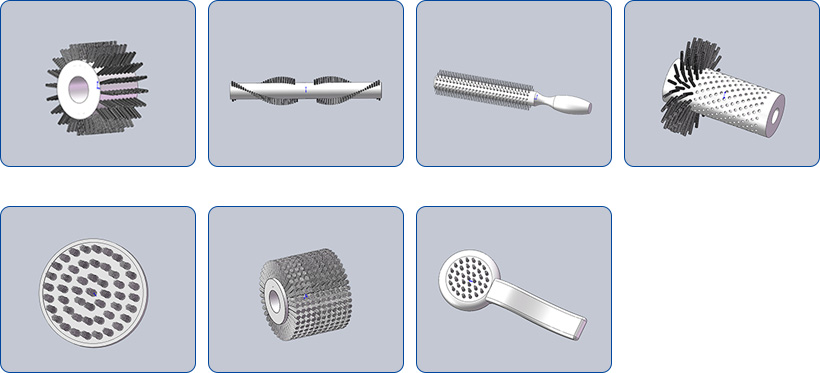

application



undefined




Company Features
1. The reputation of GUANGZHOU YITONG NC CO LTD. is known globally for its high quality personal care brush machine. - Our brush filling machine is used for toothbrush manufacturing machine and known for their reliability.
2. Please Contact Us! Technicians Of Yitong Are With Rich Experience In Design, Development And Manufacture Of personal care brush machine, toothbrush manufacturing machine cost, paint brush machine Any Question, Please Contact Us.
3. The research and development of brush filling machine are paid high attention at GUANGZHOU YITONG NC CO LTD.. - Thanks to the enterprise culture of Yitong, we all aim to strive forward at one direction. Inquiry!
