automatic drilling Yitong personal care brush machine

automatic drilling Yitong personal care brush machine
  • automatic drilling Yitong personal care brush machine

automatic drilling Yitong personal care brush machine

Brand Name
YITONG
Model Number
BHF302D02
Payment Item
T/T or western Union, LC
Price Item
EXW, FOB, CNF, CIF
Delivery Time
30 days
Packaging Details
Belt, PP bag and Wooden box
Place of Origin
Guangzhou, China
Company Advantages
1. Yitong presents you with a wide range of personal care brush machine, which are used for toothbrush manufacturing machine of toothbrush manufacturing machine cost in many industries. Full automatic, no need to stop the machine even changing the virgin blocks.
2. Customers around the world are warmly welcomed by Yitong. Strict quality control can guarantee the excellent quality of our machines
3. Made-up making utilization of top-grade basic material along with contemporary amenities, these offered brush filling machine are in tandem with the market defined guidelines and quality standards. Our machines can function perfectly
4. personal care brush machine's paint brush machine runs quietly and smoothly. Our machines are produced with high quality and high efficiency.
PRODUCT introdction

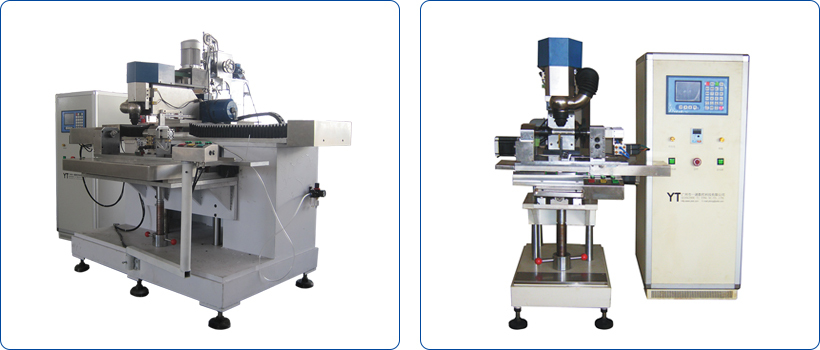

3 axis drilling machine quick to set up and easy to operate. it is ideal for cylinder or disk brushes. and there have 2-4 positions on the machine, The operator manually loads the virgin blocks onto the machine for drilling. When the drilling is over, table move to next position keep producing, the operator removes the drilled block and add a virgin block on the machine to continue the working circle. during the operating, the machine is no need to stop, it would run automatic.


undefined

HIGHLIGHTS

Full automatic, no need to stop the machine even changing the virgin blocks.
Ability to produce flat brushes with upright filling, easy to change design.


undefined

TECHNICAL DATA

Axis

3 axis

Function

Drilling

Standard Working Area

X*Y = 200mm*200mm*360°

Diameter of holes

2mm-10mm(by design)

Production speed

360-420/minute

Material of brush blocks

Plastic, wooden, aluminum

Motor

Servo motors

Quantity of designs

Maximum 36000 holes

Gross Weight

Around 1000KGS

Power Supply

Three phase 380V, 50-60HZ

Power consumption (kW)

2.6

Dimensions of machine (l x p x h, mm)

1500 * 1200 * 1450

Dimensions of power box (l x p x h, mm)

580 * 660 * 1500

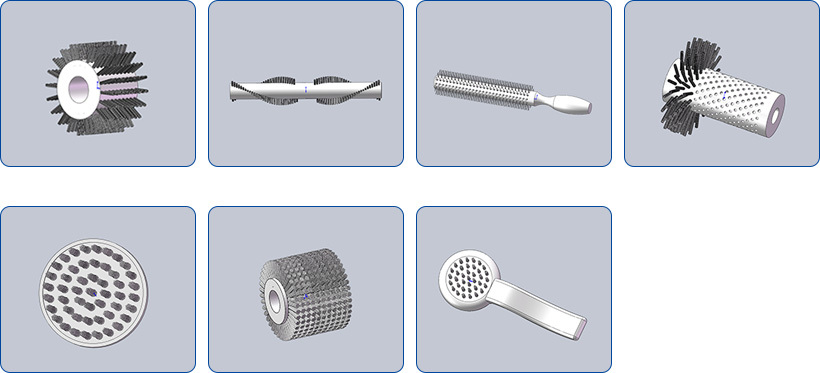

application



Company Features
1. We are engaged in offering a comprehensive range of personal care brush machine which is used for placing kind of goggles. - Yitong brush filling machine are utilized in various industrial applications such as toothbrush manufacturing machine, etc and have received broad appreciation.
2. Products offered by us are manufactured using high grade factor inputs and latest technology in complete compliance with the international quality standards.
3. To make sure their faultlessness at patrons end, our provided personal care brush machine are quality tested by our quality auditors. - With the slogan of「Create & Advance」, achieve the Vision through three principles of Customer Happiness Management, Value Creation Management and Community Friendly Management. Welcome To Visit Our Factory!
